260℃ High temperature heat trace cable self-regulating heating cable

HPC self-regulating heating cables is designed for freeze protection or process temperature maintenance of pipes and vessels with very high maintain temperatures (210°C). Maximum exposure temperature is 260°C. which provides the most versatility in heat trace designs and installation.

Brand:
Huanrui
Item NO.:
HPC-SF
Power Ouput:
15,30,45,60,75,90 (W/M)
Max. Maintain Temperature:
210°C
Max. Exposure Temperature:
260°C
Min. Installation Temperature:
-60°C
Rated Voltage:
110V-120V/220V-240V
Max. Resistance of Braid:
≤18.2Ω/km
Bus Wire Gauge:
1.21mm² & 1.37mm²
Outer Jacket:
Fluoropolymer

Overview
Recommended Products

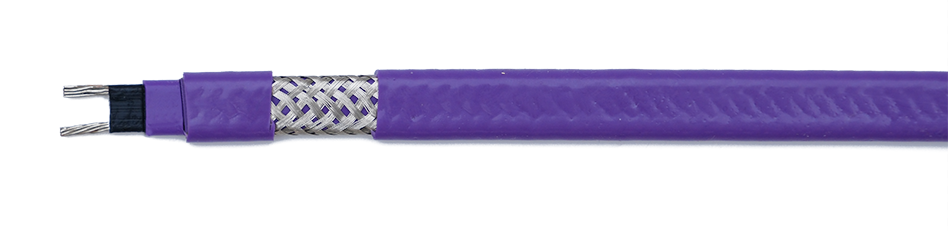

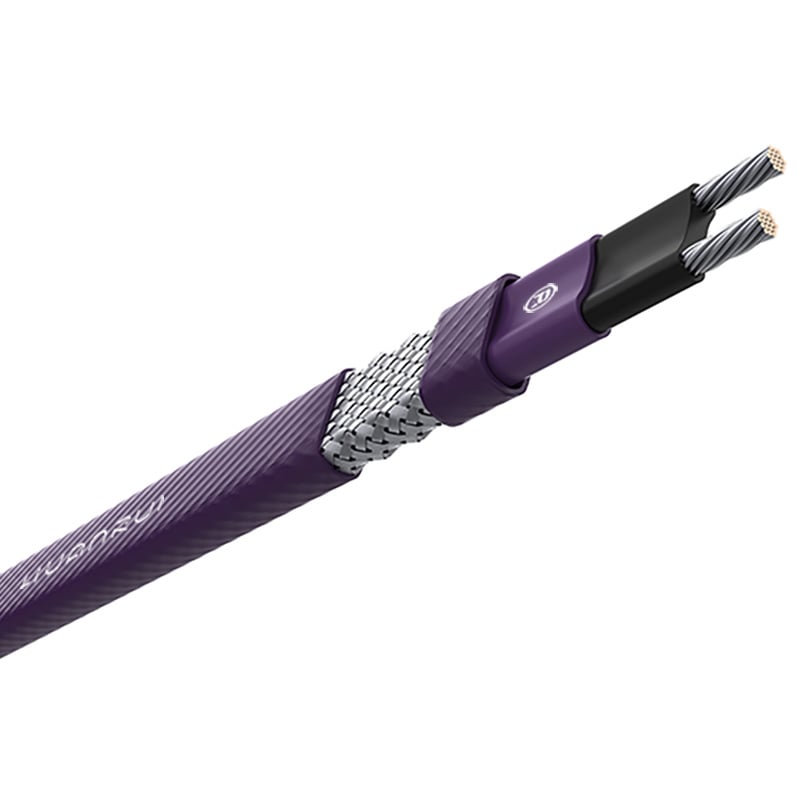

HPC self-regulating heating cables provides the most versatility in heat trace designs and applications. Constructed of a semi-conductive heater matrix extruded between parallel bus wires, a self-regulating cable adjusts its output to independently respond to ambient temperatures all along its length. As the temperature increases, the heater’s resistance increases, which lowers the output wattage. Conversely, as the temperature decreases, the resistance decreases and the cable produces more heat. So thermostat is not necessary in some applications. It will never overheat or burnout even when overlapped. The cable can also be cut to any length. As the result, we got an energy-efficient heating cable. With Fluoropolymer material for inner insulation and outer jacket, the heating cable is resistant to watery, organics, inorganic chemicals and corrosives.

Advantages of HPC

1. Multiple power designs and wide range.
2. High exposure temperature, reaching 260℃.
3. Special processing technology, low attenuation rate and long service life.
Never overheat or burnout when overlapped. Cut to any length. Easy to install. Super stable power output for long operational life.

Technical data

Output wattage: 15,30,45,60,75,90 (W/m)
Maximum maintain temperature: 210°C
Maximum exposure temperature: 260°C
Rated voltage: 110-120V,220-240V
Max. resistance of braid: ≤18.2Ω/km

HPC Series	Output power @10℃ (W/m)	Max maintain temp (℃)	Max length @10℃	Max length @0℃	Max length @-20℃	Dimension	Weight, 100m
HPC Series	Output power @10℃ (W/m)	Max maintain temp (℃)	16/32/50A (m)	16/32/50A (m)	16/32/50A (m)	(Reference)	(Reference)
15HPC2-SF	15	210	120/169/169	118/169/169	98/169/169	10.8×5.0	12.5
30HPC2-SF	30	210	81/118/188	75/118/118	65/118/118	10.8×5.0	12.5
45HPC2-SF	45	210	61/100/100	57/100/100	48/98/100	10.8×5.0	12.5
60HPC2-SF	60	210	48/87/87	43/87/87	30/82/87	10.8×5.0	12.5
75HPC2-SF	75	210	32/71/75	24/54/75	17/39/60	10.8×5.0	12.5
90HPC2-SF	90	210	20/40/62	16/30/48	10/22/34	10.8×5.0	12.5

Application

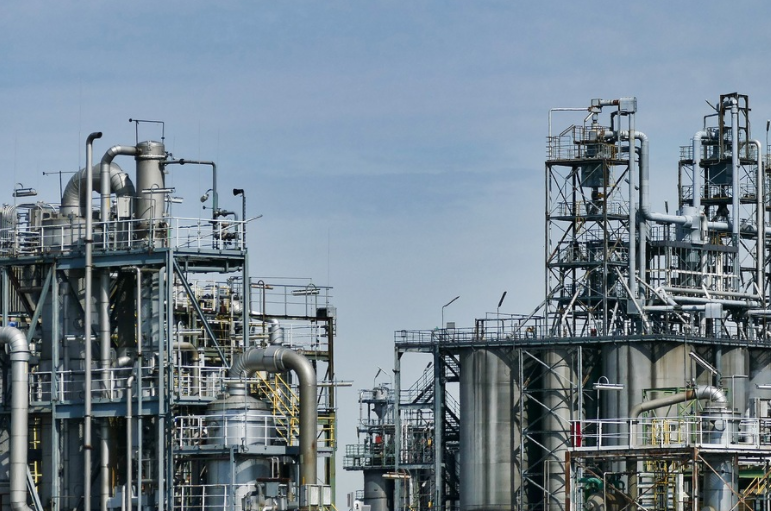

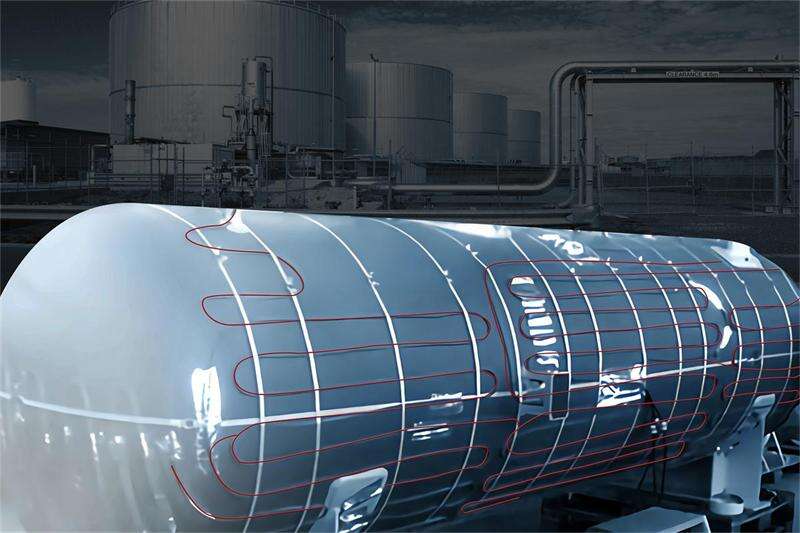

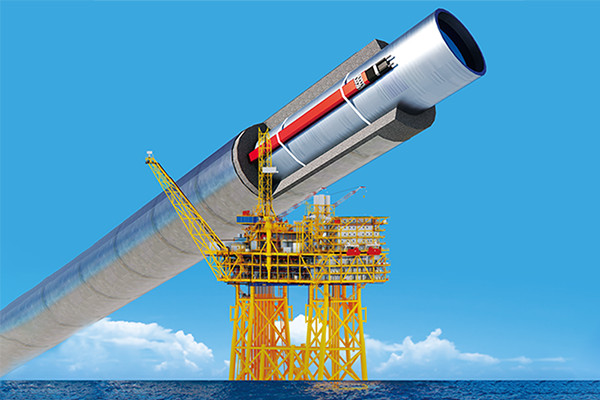

HPC series self-regulating heating cables are suitable for freeze protection and process temperature maintenance of pipes, tanks, valves, flanges, and heating requests that require high power output. Certified for use in hazardous and ordinary areas. The HPC series self-regulating heating cable can withstand the highest exposure temperature up to 260°C, and the highest maintain temperature can reach 210°C.
