How Under Floor Heating Cable Works with Different Flooring Materials

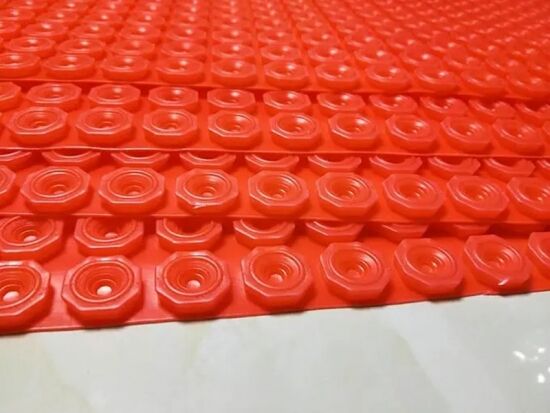

Understanding Thermal Conductivity and Subfloor Preparation for Under Floor Heating Cable

The Role of Thermal Conductivity of Flooring Materials in Heat Transfer

How well materials pass along heat affects just how good an underfloor heating cable will warm up a space. Materials that are dense, like ceramic tiles with around 1.28 W/mK thermal conductivity or natural stones ranging from 0.8 to 1.7 W/mK, let heat move through them pretty easily. This means heating systems can run cooler yet still keep rooms comfortably warm throughout. On the flip side, things like carpets rated at only about 0.04 W/mK or heavy laminate floors really block heat movement. When this happens, the heating system has to push much harder, sometimes using up to 30% more electricity according to research from Energy Saving Trust back in 2023. Getting the right kind of floor covering for what the heating system can deliver makes all the difference between wasting power and enjoying efficient warmth across different areas of the home.

Why Under Floor Heating Cable Efficiency Depends on Material Composition

A floor’s material composition affects heating efficiency through three key factors:

1. Density: Solid materials like concrete absorb and radiate heat evenly.
2. Thickness: Thinner flooring allows faster heat-up times—15–30 minutes for tiles versus over two hours for wood.
3. Structural stability: Engineered wood resists warping better than solid wood at sustained operating temperatures of 27–29°C.

Systems paired with high-conductivity materials use 15–20% less energy annually compared to low-conductivity options, according to a 2023 underfloor heating efficiency study.

Impact of Subfloor Preparation on Underfloor Heating Performance

Getting the subfloor right makes all the difference when it comes to keeping warmth where it belongs and protecting the heating system from unnecessary strain. The main things to focus on are putting down insulation boards with properly taped seams which cuts down on heat escaping through the floor by around half, smoothing out the surface with self leveling compound so there are no air pockets trapped underneath tiles, and adding cork padding for wooden floors since it actually bounces some heat back upwards. Skip any of these steps and the heating system has to work twice as hard just to reach comfortable temperatures, costing significantly more over time. Most contractors will tell anyone who asks that sloped or bumpy subfloors can really mess with electrical cables running beneath them, which is why many homeowners opt for professional help instead of trying to do it themselves.

Optimal Pairings: Ceramic, Stone Tiles, and Concrete Subfloors with Under Floor Heating Cable

Why ceramic and stone tiles are ideal for underfloor heating and tile flooring systems

When it comes to underfloor heating, ceramic and stone tiles really stand out as top performers because they conduct heat so well. These materials soak up warmth quickly and spread it around pretty evenly throughout the room. Homeowners often notice their floors get comfortable much faster than with wooden floors or carpets, sometimes cutting down on waiting time by almost half. The fact that these tiles don't have pores means less heat gets lost along the way. Most of what's generated actually makes it into the living area, somewhere between 85 to 95 percent according to various studies. Looking at industry data, we find that ceramic tiles typically maintain surface temps right around 24 to 27 degrees Celsius. That's considered just about perfect for both feeling good barefoot and keeping energy bills reasonable over time.

Thermal conductivity of flooring materials: Data showing stone’s superior heat transfer (0.8–1.7 W/mK)

The thermal conductivity of natural stone ranges from about 0.8 to 1.7 W/mK which is roughly three times better than vinyl at just 0.19 W/mK. This makes stone much better at transferring heat quickly and keeping it stable over time. Floors made of stone actually produce around 15 to 20 percent more heat per square meter compared to ceramic options. Plus they stay warm for about 25% longer even after the heating system turns off. Granite and marble work especially well with underfloor heating systems. These materials need anywhere from 18 to 22% less energy to reach and maintain desired temperatures when compared to lighter density flooring materials according to the latest 2024 Flooring Materials Report.

Why concrete is the most thermally efficient base for under floor heating cable

Concrete enhances underfloor heating performance through three mechanisms:

1. Thermal mass stabilization: Stores 4–6 hours of residual heat, smoothing temperature fluctuations.
2. Even heat distribution: Limits temperature variance across the floor to ≅1.5°C.
3. Structural conductivity: Transmits 92–96% of heat upward, far exceeding wood subfloors’ 35–40%.

When combined with stone tiles, this pairing achieves 28–33 W/m² heat output—the maximum allowed under EU energy regulations.

Importance of an insulation layer for underfloor heating to minimize downward heat loss

A 20mm rigid foam insulation layer beneath heating cables significantly improves efficiency:

Data from the 2022 Building Energy Journal shows proper insulation increases upward heat direction from 68% to 94%, making it essential in both new builds and retrofits.

Engineered Wood and Laminate Flooring with Under Floor Heating Cable: Balancing Efficiency and Stability

Challenges of Using Wood Flooring with Underfloor Heating

Solid wood flooring is prone to expansion and contraction under fluctuating temperatures, increasing the risk of warping or gapping. A 2023 study found that surface temperatures above 27°C (80°F) lead to 12–15% more dimensional instability in heated installations compared to non-heated ones.

Why Engineered Wood Performs Better Than Solid Wood Under Under Floor Heating Cable

Engineered wood’s layered construction—featuring a hardwood veneer bonded to a plywood or HDF core—resists heat-induced movement. This design reduces moisture sensitivity by 38% compared to solid wood while maintaining a thermal conductivity of 0.12–0.15 W/mK, ensuring effective heat transfer without compromising structural integrity.

Maximum Temperature Limits for Engineered Wood Flooring with Underfloor Heating

Manufacturers recommend keeping surface temperatures below 27°C (80°F) to prevent delamination. Modern low-temperature under floor heating cable systems use even heat distribution patterns and floor sensors to maintain safe, comfortable conditions without exceeding this threshold.

How Under Floor Heating Cable Works with Laminate Flooring

Laminate floors tend to warm up quicker than traditional hardwood because of their construction. Most laminates have three main parts: a top layer of melamine that resists scratches, some printed paper that looks like wood grain, and a dense fiberboard base underneath. The material conducts heat at around 0.10 to 0.13 watts per meter Kelvin, which means installers need to place heating cables closer together to get even coverage across the floor surface. Newer underfloor heating systems tackle this issue by incorporating smart controls that adjust power output according to what sensors detect throughout different areas of the room. Some manufacturers now offer these features as standard equipment rather than optional upgrades.

Thermal Resistance Issues in Thicker Laminate Boards and Recommended R-Values

Thicker laminate planks (12–14mm) have higher thermal resistance, with R-values reaching 0.08 m²·K/W—reducing efficiency by 18–22% compared to 8mm variants. Industry best practices recommend:

Using slim boards with high-conductivity underlayments helps maintain the designed heat output of the under floor heating cable system.

Luxury Vinyl and Carpet Applications with Under Floor Heating Cable: Managing Performance and Resistance

Advantages of Vinyl Flooring with Underfloor Heating in High-Moisture Areas

Luxury vinyl flooring works really well in areas like bathrooms, kitchens, and basements because it resists water damage and stays stable even when temperatures fluctuate. Made from synthetic materials, this type of flooring won't swell or warp over time. Plus, the thin design (around 4 to 5 mm thick) actually helps heat move through better. When paired with underfloor heating cables, surfaces warm up about 30 percent quicker compared to traditional wooden floors that are much thicker. This makes LVF a smart choice for spaces where moisture control and efficient heating matter most.

Heat Conductivity of Flooring Materials: Comparing Vinyl (0.19 W/mK) to Other Options

When looking at thermal properties, vinyl sits somewhere between ceramic tile and carpet. Its thermal conductivity measures around 0.19 W/mK which is actually quite low compared to ceramic tiles at 1.0 W/mK, but definitely better than carpets that hover around 0.05 W/mK. Laminate flooring comes close with about 0.20 W/mK. This middle ground works well for spaces where we want decent warmth without compromising on moisture resistance. According to research published by the National Flooring Institute last year, homes with vinyl flooring combined with radiant heating systems saw roughly an 18 percent drop in energy consumption during those damp winter months when compared against traditional unheated tile installations. Makes sense really since vinyl doesn't conduct heat away as fast as some other materials do.

Ensuring Compatibility Between Luxury Vinyl Flooring and Underfloor Heating Systems

Always check the manufacturer’s maximum temperature rating (typically ≅27°C/81°F) and use a programmable thermostat to avoid overheating. Click-lock LVF systems accommodate thermal expansion gaps, minimizing buckling risks. Avoid adhesive-based installations—thermal cycling can weaken bonds by up to 40% over five years (Flooring Standards Council, 2022).

Impact of Carpet Tog Rating on Underfloor Heating Efficiency

Carpet’s insulating effect depends on its tog rating:

• Low-tog (<1.5): Ideal for radiant systems (e.g., 80% wool blends)
• Medium-tog (1.5–2.5): Requires higher cable wattage (≳200 W/m²)
• High-tog (>2.5): Blocks over 60% of heat output

Maximum Combined Tog Rating (Carpet + Underlay) for Effective Under Floor Heating Cable Operation

To maintain good heating performance, it's generally recommended to keep the combined tog rating of carpet and underlay under about 2.5. According to findings from The Rugs Company in 2023, loop pile carpets paired with polypropylene underlay actually conduct heat around 20-25% more effectively compared to traditional cut pile carpets backed with rubber. When installing electric heating systems, most experts suggest placing cables between 75 and 100 millimeters apart underneath thin pile carpets. This helps overcome the insulating effect of thicker materials while also avoiding those annoying hot spots that can develop when cables are spaced too far apart.

Best Practices for Installing Under Floor Heating Cable Across Flooring Types

Best practices for installing under floor heating cable beneath tile surfaces

Getting started requires first checking that the subfloor is level. If it isn't, applying some self leveling compound will help create that flat surface needed beneath tiles so they sit properly. When laying out the heating cables, leave about 3 to 4 inches between each one across the room. This spacing helps prevent those annoying cold patches people often complain about later on. Make sure these cables get completely covered with thinset mortar before adding any tiles on top. Most professionals recommend giving everything at least 24 hours to dry properly after applying adhesives. Rushing this step can lead to problems down the road, especially with harder materials like ceramic or natural stone which need good thermal conductivity throughout their entire surface area for optimal performance.

Installation tips to prevent warping or gapping in wood flooring

Acclimatize engineered wood planks for 72 hours at 18–22°C (64–72°F) before installation. Leave 10–15mm expansion gaps around room edges and regulate surface temperatures below 27°C (80°F) using a floor probe thermostat. For click-lock systems, preheat the subfloor to operational levels before final assembly to minimize seasonal movement.

Avoiding adhesive failure due to thermal expansion in vinyl installations

Use flexible pressure-sensitive adhesives rated for temperatures up to 35°C (95°F), and avoid cold seams in sheet vinyl. Install heating cables at 50% density (5–6W/ft²) to reduce stress from thermal cycling. Allow a 48-hour curing period at room temperature before activating the heating system.

Trend: Use of reflective foil barriers in modern subfloor preparation

Modern installations increasingly incorporate 2mm aluminum foil boards beneath heating cables, reflecting up to 95% of heat upward. This innovation reduces warm-up times by 20–30% compared to traditional plywood subfloors (2023 ASHRAE Subfloor Efficiency Report) and acts as a vapor barrier—particularly beneficial for moisture-sensitive flooring like engineered wood.
