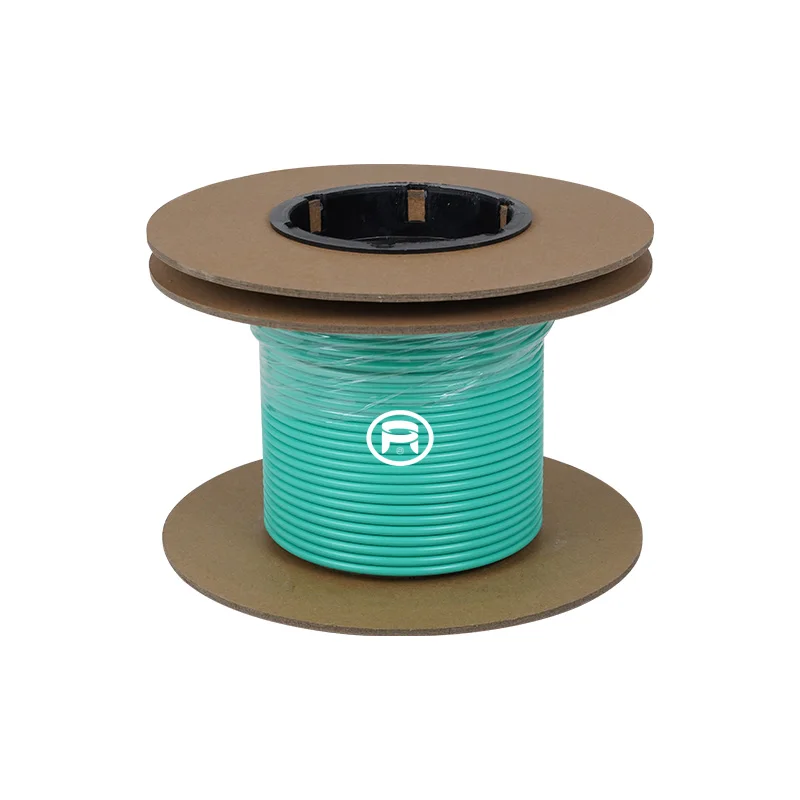

product huanrui t cable energy efficient floor heating solution safe and flexible electric underfloor heating cable for home comfort-0

Underfloor Heating Cable

Home >  Products >  Underfloor Heating Cable And Mat >  Underfloor Heating Cable

Home > Underfloor Heating Cable

ALL PRODUCTS

HUANRUI T-Cable Energy-Efficient Floor Heating Solution Safe and Flexible Electric Underfloor Heating Cable for Home Comfort
HUANRUI T-Cable Energy-Efficient Floor Heating Solution Safe and Flexible Electric Underfloor Heating Cable for Home Comfort
HUANRUI T-Cable Energy-Efficient Floor Heating Solution Safe and Flexible Electric Underfloor Heating Cable for Home Comfort
HUANRUI T-Cable Energy-Efficient Floor Heating Solution Safe and Flexible Electric Underfloor Heating Cable for Home Comfort
HUANRUI T-Cable Energy-Efficient Floor Heating Solution Safe and Flexible Electric Underfloor Heating Cable for Home Comfort
HUANRUI T-Cable Energy-Efficient Floor Heating Solution Safe and Flexible Electric Underfloor Heating Cable for Home Comfort
HUANRUI T-Cable Energy-Efficient Floor Heating Solution Safe and Flexible Electric Underfloor Heating Cable for Home Comfort
HUANRUI T-Cable Energy-Efficient Floor Heating Solution Safe and Flexible Electric Underfloor Heating Cable for Home Comfort
HUANRUI T-Cable Energy-Efficient Floor Heating Solution Safe and Flexible Electric Underfloor Heating Cable for Home Comfort
HUANRUI T-Cable Energy-Efficient Floor Heating Solution Safe and Flexible Electric Underfloor Heating Cable for Home Comfort
HUANRUI T-Cable Energy-Efficient Floor Heating Solution Safe and Flexible Electric Underfloor Heating Cable for Home Comfort
HUANRUI T-Cable Energy-Efficient Floor Heating Solution Safe and Flexible Electric Underfloor Heating Cable for Home Comfort

HUANRUI T-Cable Energy-Efficient Floor Heating Solution Safe and Flexible Electric Underfloor Heating Cable for Home Comfort

Spu:
1601660802469
Inquiry
  • Overview
  • Recommended Products
Product Description

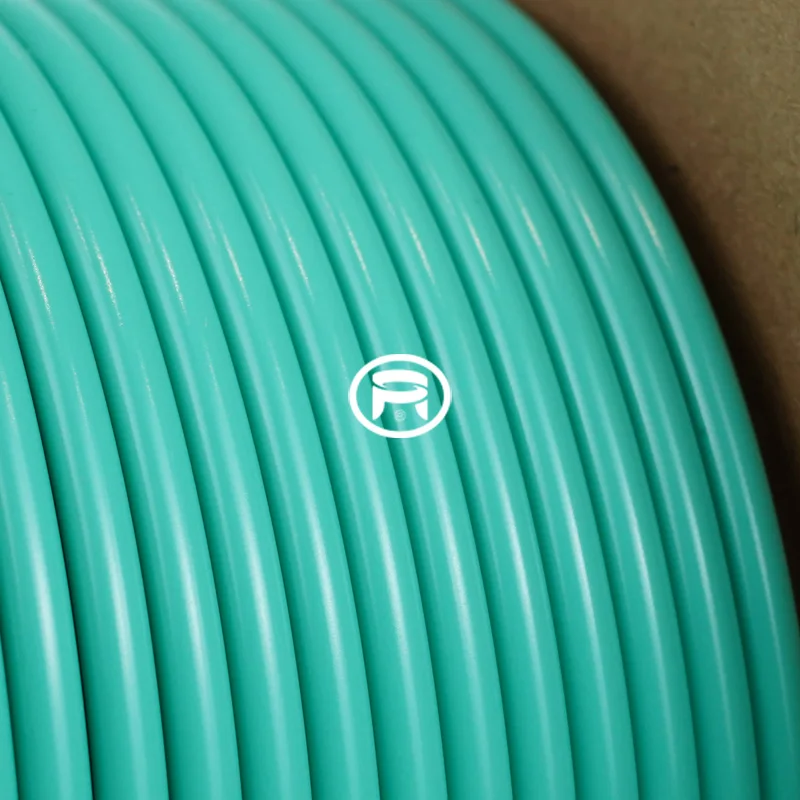

product huanrui t cable energy efficient floor heating solution safe and flexible electric underfloor heating cable for home comfort-1

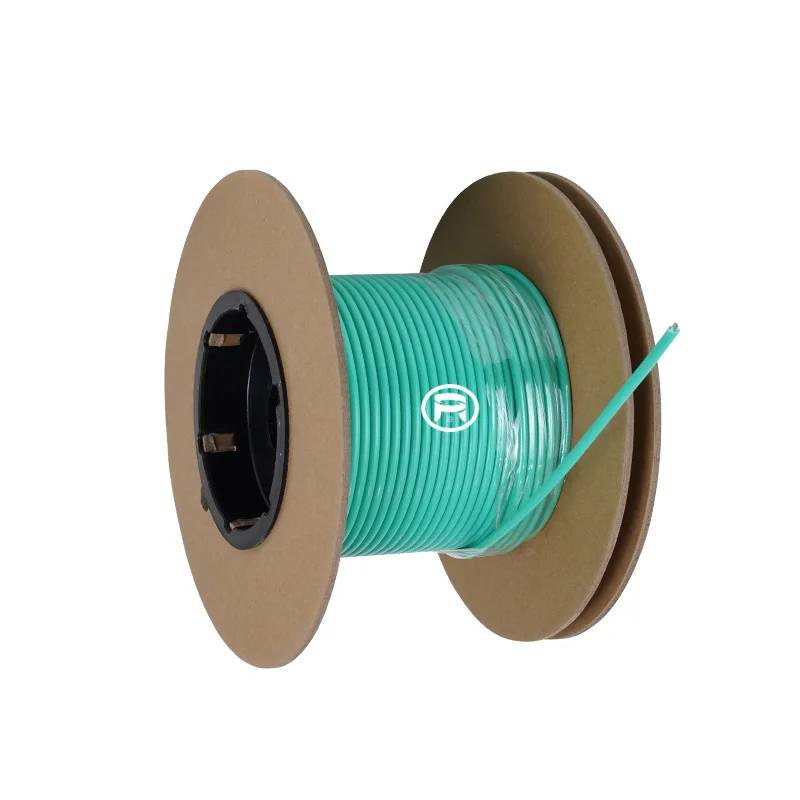

product huanrui t cable energy efficient floor heating solution safe and flexible electric underfloor heating cable for home comfort-2

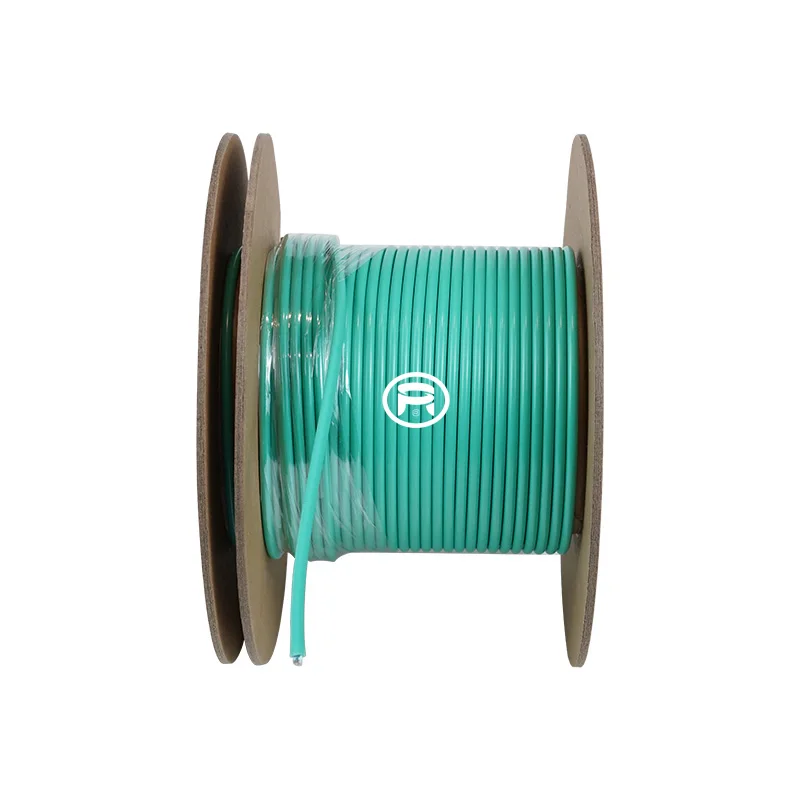

product huanrui t cable energy efficient floor heating solution safe and flexible electric underfloor heating cable for home comfort-3

Introduction

T-cable underfloor heating cable is designed to be as thin as possible, diameter only 3.6mm, have two different wattage, ensure the economic and energy saving and decrease the floor level to the maximum extent. Designed for installation under tile, wood floor, marble floor, usually set installation 100W/m², 150W/m² and 200W/m².

Features

*Twin conductor heating cable
*Flexible installation
*Emit zero EMF (electromagnetic fields)
*Durable construction
*Single point safety connection

Technical data

Cable construction: Twin conductor
Conductor material: Solid heating core
Insulation material: FEP
Insulation optional: TPEE for T-cable(T), XLPE for T-cable(X)
Shield: Aluminum-plastic shield
Outer Insulation: PVC
Connector: Out splice
Outer diameter: 3.6mm
Rated Voltage: 230V
Power output: 12W/m, 18W/m
Resistance tolerance: +10%/-5%
Cold lead: 2.5m length

Product advantages

1.Long life time: PTC semi-conductive matrix with high quality and excellent technology.
2.Low energy consumption: Due to unique PTC property, the cable adjust the output power respond to ambient temperature.
3.Excellent heat resistance: PTC semi-conductive matrix is treated by irradiation cross linking reaction. High insulation resistance.
4.Cut to length: PTC semi-conductive matrix is composed of the infinite parallel connection of carbon particles, allowing it to be cut to the exact length required.
5.Easy for installation: Linear cable, complex installation available, never overheat when overlapped.
6.Low starting current: PTC 3 layer co-extruded technology, low starting current and low Attenuation rate.
7.Cable durable: UV protection, high and low temperature resistant, weather resistant.
Part Number
Rated Voltage/Vac
Length/m
Power Output/W
Resistance/Ω
T-cable12-150
230
12.5
150
352.7
T-cable12-225
230
18.8
225
235.1
T-cable12-300
230
25
300
176.3
T-cable12-375
230
31.3
375
141.1
T-cable12-450
230
37.5
450
117.6
T-cable12-525
230
43.8
525
100.8
T-cable12-600
230
50
600
88.2
T-cable12-675
230
56.3
675
78.4
T-cable12-750
230
62.5
750
70.5
T-cable12-900
230
75
900
58.8
T-cable12-1050
230
87.5
1050
50.4
T-cable12-1200
230
100
1200
44.1
T-cable12-1350
230
112.5
1350
39.2
T-cable12-1500
230
125
1500
35.3
T-cable12-1800
230
150
1800
29.4
Part Number
Rated Voltage/Vac
Length/m
Power Output/W
Resistance/Ω
T-cable18-135
230
7.5
135
391.85
T-cable18-200
230
11.11
200
264.5
T-cable18-270
230
15.00
270
195.93
T-cable18-400
230
22.22
400
132.25
T-cable18-535
230
29.72
535
98.88
T-cable18-600
230
33.33
600
88.17
T-cable18-680
230
37.78
680
77.79
T-cable18-800
230
44.44
800
66.13
T-cable18-935
230
51.94
935
56.58
T-cable18-1100
230
61.11
1100
48.09
T-cable18-1220
230
67.78
1220
43.36
T-cable18-1340
230
74.44
1340
39.48
T-cable18-1500
230
83.33
1500
35.27
T-cable18-1625
230
90.28
1625
32.55
T-cable18-1900
230
105.56
1900
27.84
T-cable18-2135
230
118.61
2135
24.78
T-cable18-2295
230
127.50
2296
23.05
T-cable18-2775
230
154.17
2775
19.06
