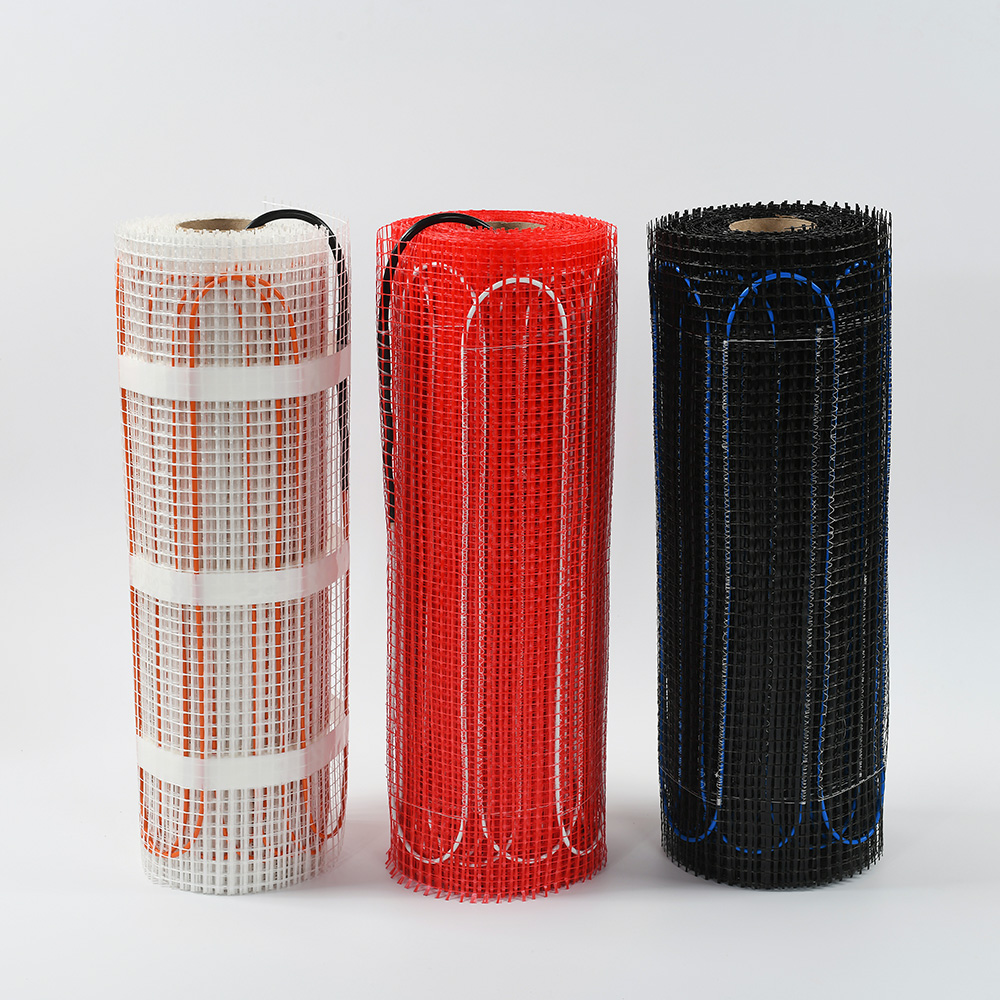

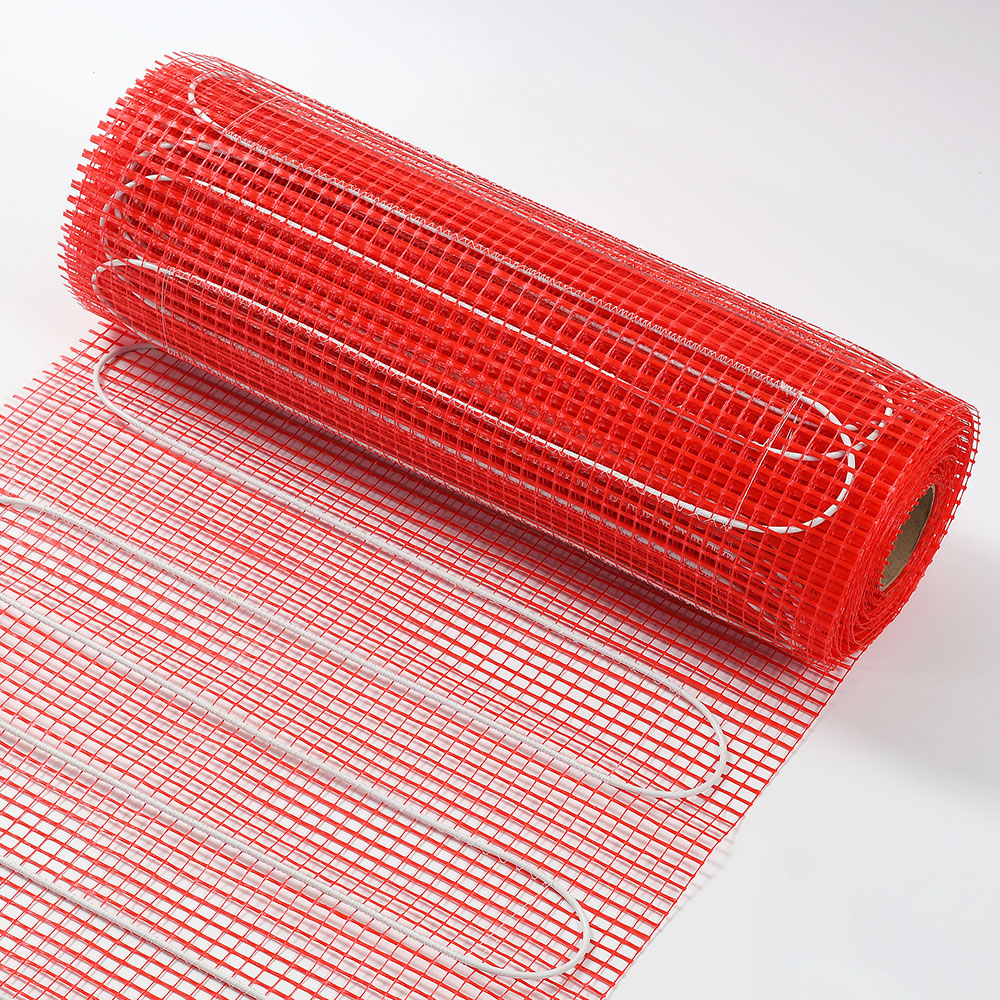

T-mat floor warming mat
Bring warm and comfortable feeling to people in cold season, a proven technique which is energy saving, safe and reliable. Application: Under tile, marble, laminated floor, wood etc.
Feature
Twin conductor cable
Durable construction
Emit zero EMF (Electro-magnetic Fields)
Safety approved for wet location
Flexible and easy installation
Single point connection
Technical Data
Cable construction： Twin conductor
Rated voltage： 120V, 240V
Power output： 130W/m² (12W/ft²)
Cable spacing： 3.15inch (80mm)
Cable diameter： 3.2mm-4.5mm (1/8"-1/6")
Conductor insulation： Fluoropolymer
Jacket： PVC/Fluoropolymer
Resistance tolerance： -5%/+10%
Max. ambient temperature： 85°F (30°C)
Min. installation temperature： 40°F (5°C)
Cold lead： 2 wire 16/14AWG + ground braid, 8ft (2.5m) length
120V |
Heating Area |
Mat Dimension |
Power output (12W/sq. ft) |
Resistance/Ω -5 %/+10% |
Current/ Amps |
||
Part Number |
ft² |
m² |
in.*ft. |
m*m |
|||
T-mat1-120 |
10 |
0.93 |
20*6.1 |
0.5*1.9 |
120 |
120.00 |
1 |
T-mat1-180 |
15 |
1.39 |
20*9.1 |
0.5*2.8 |
180 |
80.00 |
1.5 |
T-mat1-240 |
20 |
1.86 |
20*12.2 |
0.5*3.7 |
240 |
60.00 |
2 |
T-mat1-300 |
25 |
2.32 |
20*15.2 |
0.5*4.6 |
300 |
48.00 |
2.5 |
T-mat1-360 |
30 |
2.79 |
20*18.3 |
0.5*5.6 |
360 |
40.00 |
3 |
T-mat1-420 |
35 |
3.25 |
20*21.3 |
0.5*6.5 |
420 |
34.29 |
3.5 |
T-mat1-480 |
40 |
3.72 |
20*24.4 |
0.5*7.4 |
480 |
30.00 |
4 |
T-mat1-540 |
45 |
4.18 |
20*27.5 |
0.5*8.3 |
540 |
26.67 |
4.5 |
T-mat1-600 |
50 |
4.65 |
20*30.5 |
0.5*9.3 |
600 |
24.00 |
5 |
T-mat1-720 |
60 |
5.57 |
20*36.6 |
0.5*11.1 |
720 |
20.00 |
6 |
T-mat1-840 |
70 |
6.50 |
20*42.7 |
0.5*13.0 |
840 |
17.14 |
7 |
T-mat1-960 |
80 |
7.43 |
20*48.8 |
0.5*14.9 |
960 |
15.00 |
8 |
T-mat1-1080 |
90 |
8.36 |
20*54.9 |
0.5*16.7 |
1080 |
13.33 |
9 |
T-mat1-1200 |
100 |
9.29 |
20*61.0 |
0.5*18.6 |
1200 |
12.00 |
10 |
T-Mat1-1440 |
120 |
11.15 |
20*73.2 |
0.5*22.3 |
1440 |
10.00 |
12 |
240V |
Heating Area |
Mat Dimension |
Power output (12W/sq. ft) |
Resistance/Ω -5 %/+10% |
Current/ Amps |
||
Part Number |
ft² |
m² |
in.*ft. |
m*m |
|||
T-mat2-180 |
15 |
1.39 |
20*9.1 |
0.5*2.8 |
180 |
320.00 |
0.75 |
T-mat2-240 |
20 |
1.86 |
20*12.2 |
0.5*3.7 |
240 |
240.00 |
1 |
T-mat2-300 |
25 |
2.32 |
20*15.2 |
0.5*4.6 |
300 |
192.00 |
1.25 |
T-mat2-360 |
30 |
2.79 |
20*18.3 |
0.5*5.6 |
360 |
160.00 |
1.5 |
T-mat2-420 |
35 |
3.25 |
20*21.3 |
0.5*6.5 |
420 |
137.14 |
1.75 |
T-mat2-480 |
40 |
3.72 |
20*24.4 |
0.5*7.4 |
480 |
120.00 |
2 |
T-mat2-540 |
45 |
4.18 |
20*27.5 |
0.5*8.3 |
540 |
106.67 |
2.25 |
T-mat2-600 |
50 |
4.65 |
20*30.5 |
0.5*9.3 |
600 |
96.00 |
2.5 |
T-mat2-720 |
60 |
5.57 |
20*36.6 |
0.5*11.1 |
720 |
80.00 |
3 |
T-mat2-840 |
70 |
6.50 |
20*42.7 |
0.5*13.0 |
840 |
68.57 |
3.5 |
T-mat2-960 |
80 |
7.43 |
20*48.8 |
0.5*14.9 |
960 |
60.00 |
4 |
T-mat2-1080 |
90 |
8.36 |
20*54.9 |
0.5*16.7 |
1080 |
53.33 |
4.5 |
T-mat2-1200 |
100 |
9.29 |
20*61.0 |
0.5*18.6 |
1200 |
48.00 |
5 |
T-mat2-1320 |
110 |
10.22 |
20*67.1 |
0.5*20.5 |
1320 |
43.64 |
5.5 |
T-mat2-1440 |
120 |
11.15 |
20*73.2 |
0.5*22.3 |
1440 |
40.00 |
6 |
T-mat2-1680 |
140 |
13.01 |
20*85.4 |
0.5*26.0 |
1680 |
34.29 |
7 |
T-mat2-1920 |
160 |
14.86 |
20*97.6 |
0.5*29.7 |
1920 |
30.00 |
8 |
T-mat2-2160 |
180 |
16.72 |
20*109. |
0.5*33.4 |
2160 |
26.67 |
9 |
T-mat2-2400 |
200 |
18.58 |
8 |
0.5*37.1 |
2400 |
24.00 |
10 |
