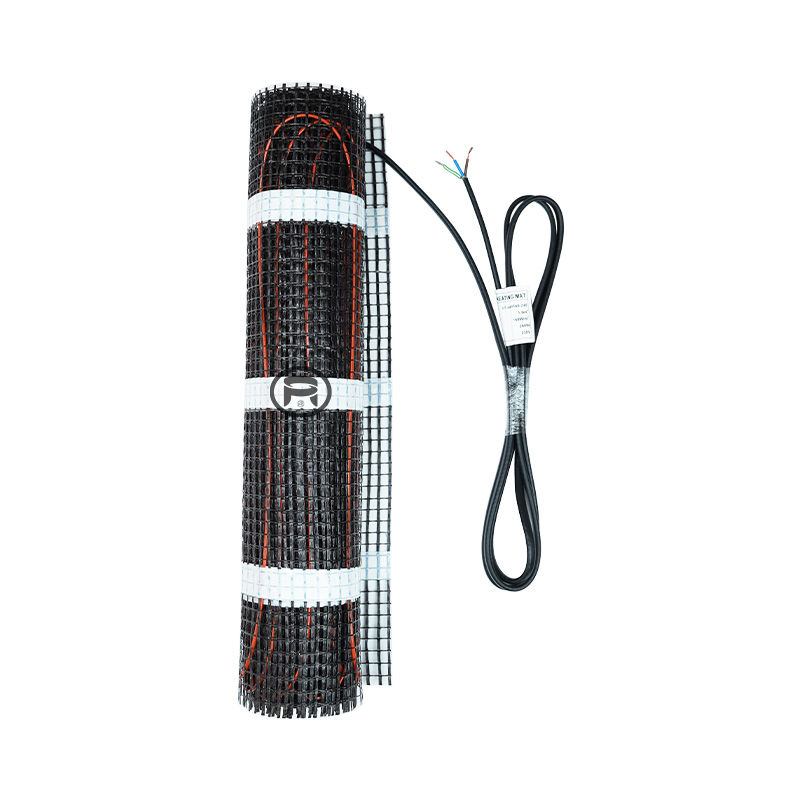

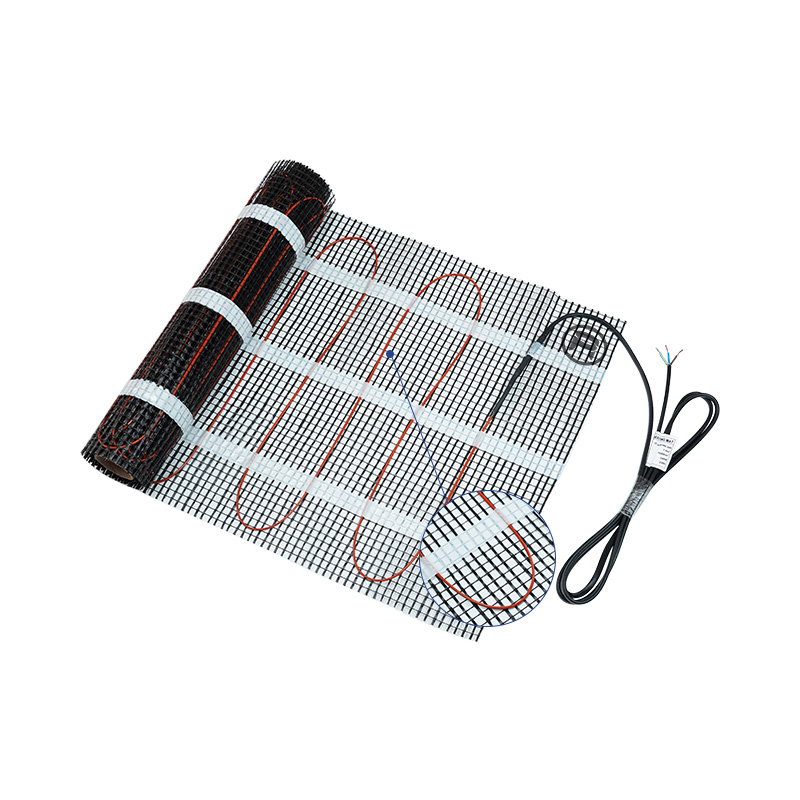

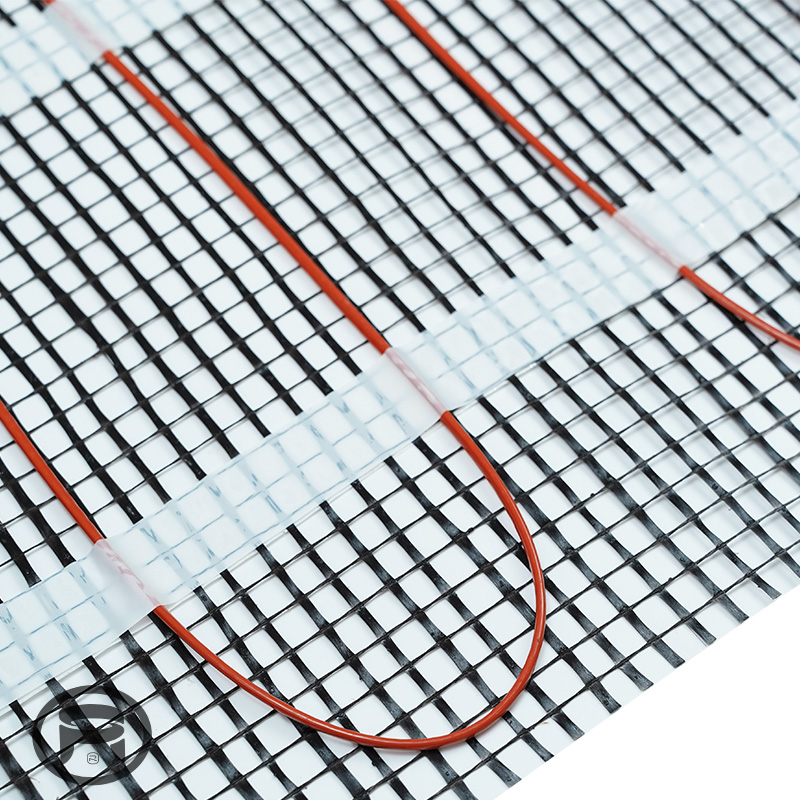

150w or 200w per sqm electric underfloor heating mat.
Brand:
HuanruiPower Ouput:
150W/m2,200W/m2Min. Installation Temperature:
5°CRated Voltage:
220-230VApplicable areas :
EuropeApplication:
Residential floor warmingMin.bending radius:
6DJacket optional:
Nylon for UT-cable(A)Certifications:
CE EAC TUVProduct advantages
1.Durable and strong structure
2.High water-proofness. IP68
3.Long working life
4.25years warranty
5.Small size ,no increase in floor thickness
6.100% screened with Zero EMF
7.100% tested before delivery
8.Free of maintenance
Features and applications
• Residential indoor electric underfloor heating cable.
• Can be used in humid places, such as bathroom.
• It is applicable for flooring material like concrete, ceramic tile, marble, wood.
• Easy installation for indoor whole and partial warming systems for floor and wall warming.
• 3.0*2.0mm in diameter, lower height, cost-saving.
Part Number |
Heating Area / m2 |
Mat Dimensions / m*m |
Output Power / W (150W/m2) |
Current / Amps |
Resistance / Ω |
UT-mat150-150 |
1 |
0.5*2 |
150 |
0.7 |
352.7 |
UT-mat150-225 |
1.5 |
0.5*3 |
225 |
1 |
235.1 |
UT-mat150-300 |
2 |
0.5*4 |
300 |
1.3 |
176.3 |
UT-mat150-375 |
2.5 |
0.5*5 |
375 |
1.6 |
141.1 |
UT-mat150-450 |
3 |
0.5*6 |
450 |
2 |
117.6 |
UT-mat150-525 |
3.5 |
0.5*7 |
525 |
2.3 |
100.8 |
UT-mat150-600 |
4 |
0.5*8 |
600 |
2.6 |
88.2 |
UT-mat150-675 |
4.5 |
0.5*9 |
675 |
2.9 |
78.4 |
UT-mat150-750 |
5 |
0.5*10 |
750 |
3.3 |
70.5 |
UT-mat150-900 |
6 |
0.5*12 |
900 |
3.9 |
58.8 |
UT-mat150-1050 |
7 |
0.5*14 |
1050 |
4.6 |
50.4 |
UT-mat150-1200 |
8 |
0.5*16 |
1200 |
5.2 |
44.1 |
UT-mat150-1350 |
9 |
0.5*18 |
1350 |
5.9 |
39.2 |
UT-mat150-1500 |
10 |
0.5*20 |
1500 |
6.5 |
35.3 |
UT-mat150-1800 |
12 |
0.5*24 |
1800 |
7.8 |
29.4 |
Part Number |
Heating Area m2 |
Mat Dimensions m*m |
Output Power / W (200W/m2) |
Current / Amps |
Resistance / Ω |
UT-mat200-200 |
1 |
0.5*2 |
200 |
0.9 |
264.5 |
UT-mat200-300 |
1.5 |
0.5*3 |
300 |
1.3 |
176.3 |
UT-mat200-400 |
2 |
0.5*4 |
400 |
1.7 |
132.3 |
UT-mat200-500 |
2.5 |
0.5*5 |
500 |
2.2 |
105.8 |
UT-mat200-600 |
3 |
0.5*6 |
600 |
2.6 |
88.2 |
UT-mat200-700 |
3.5 |
0.5*7 |
700 |
3 |
75.6 |
UT-mat200-800 |
4 |
0.5*8 |
800 |
3.5 |
66.1 |
UT-mat200-900 |
4.5 |
0.5*9 |
900 |
3.9 |
58.8 |
UT-mat200-1000 |
5 |
0.5*10 |
1000 |
4.3 |
52.9 |
UT-mat200-1200 |
6 |
0.5*12 |
1200 |
5.2 |
44.1 |
UT-mat200-1400 |
7 |
0.5*14 |
1400 |
6.1 |
37.8 |
UT-mat200-1600 |
8 |
0.5*16 |
1600 |
7 |
33.1 |
UT-mat200-1800 |
9 |
0.5*18 |
1800 |
7.8 |
29.4 |
UT-mat200-2000 |
10 |
0.5*20 |
2000 |
8.7 |
26.5 |
UT-mat200-2400 |
12 |
0.5*24 |
2400 |
10.4 |
22 |
