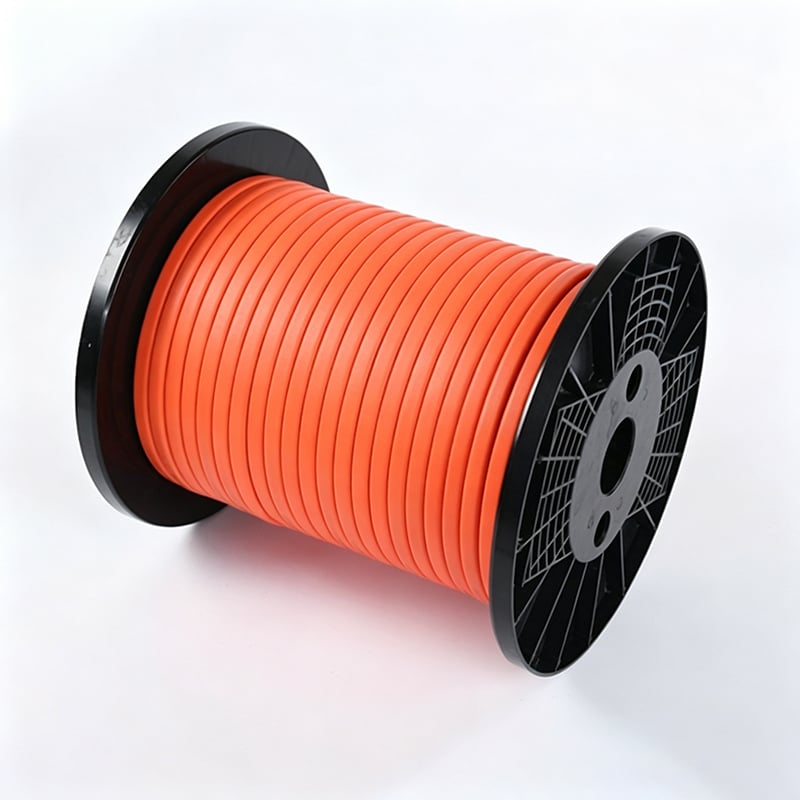

PSR Self-Regulating Heating Cable
PSR Self-Regulating Heating Cable
PSR Self-Regulating Heating Cable
PSR Self-Regulating Heating Cable
PSR Self-Regulating Heating Cable
PSR Self-Regulating Heating Cable
PSR Self-Regulating Heating Cable
PSR Self-Regulating Heating Cable

PSR Self-Regulating Heating Cable

Max. Exp. Temp.: 135°C

Max. Maint. Temp.: 85°C

Benchmarked against international mainstream technologies, PSR is a general low-temperature self-regulating heating cable tailored for basic industrial heat tracing. It maintains a continuous operating temperature of 85°C and withstands transient temperature up to 135°C.

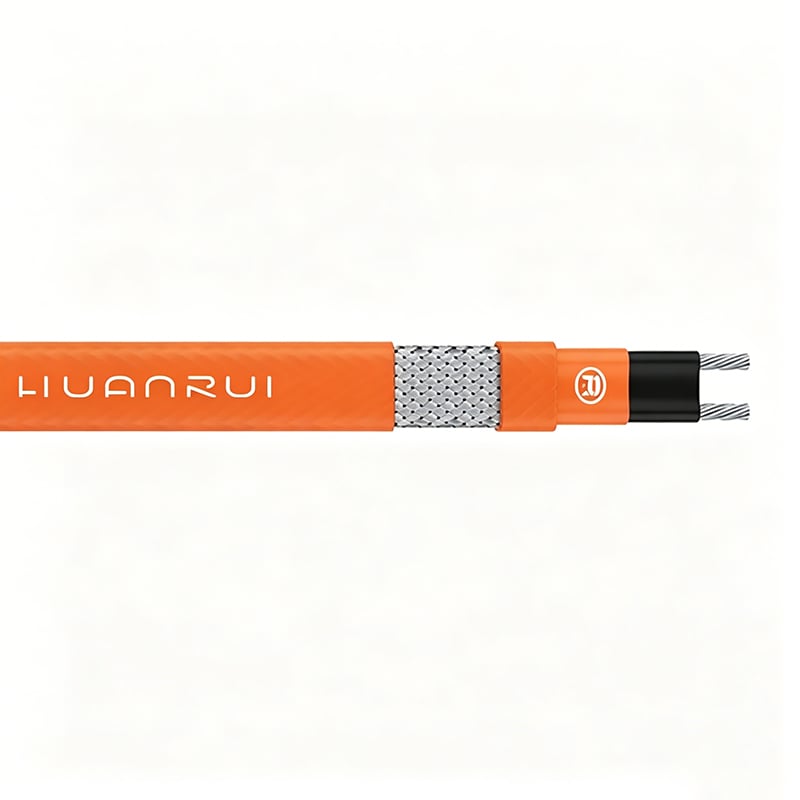

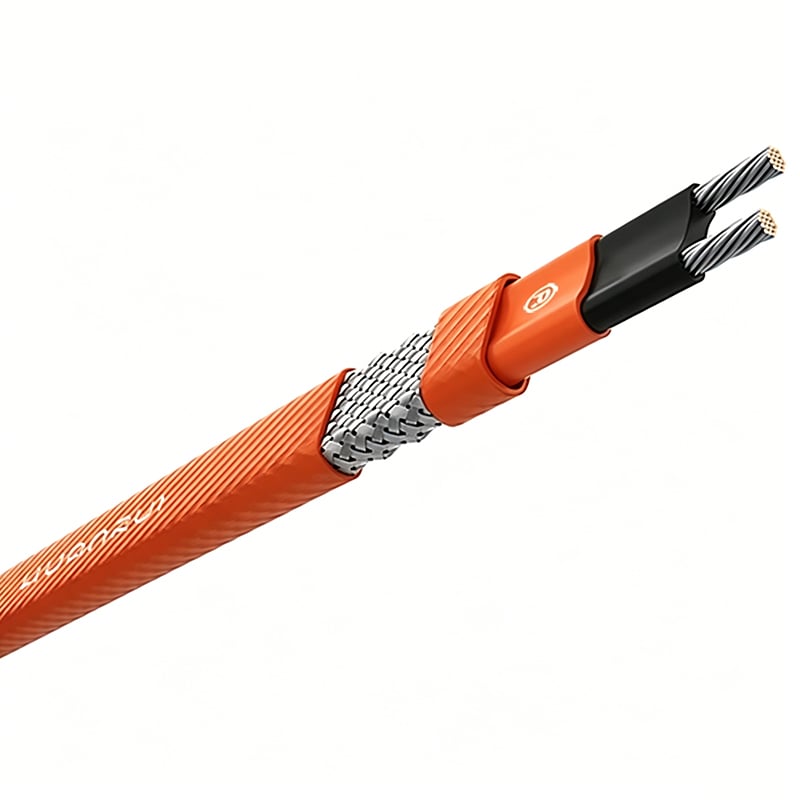

Integrally extruded with parallel bus wires and semiconductive heating matrix, it features PTC characteristics. The cable automatically adjusts power output along its length, boosting heat output at low temperature and reducing power at high temperature. No thermostat is required for regular use, and no overheating or burnout occurs even under overlapping installation. Multiple sheath options suit ordinary, corrosive and hazardous environments, delivering outstanding versatility and cost efficiency.

Inquiry
  • Overview
  • Recommended Products

Application

It serves freeze protection and basic process temperature control for facilities with moderate and low heat loss:

  • Freezing prevention and thermal maintenance for factory pipelines, storage tanks, valves and flanges
  • All-weather heat tracing for outdoor overhead pipelines and utility lines
  • Standard application in non-hazardous areas; fluoropolymer sheath version applicable to corrosive and explosive zones
  • Large-scale basic heat tracing demands in petroleum, chemical and power industries



Feature

  • Adaptive power regulation: Independent temperature sensing and power adjustment saves energy and avoids overheating risks
  • Wide environmental adaptability: Installable at minimum -60°C, suitable for frigid and complex working conditions
  • Multiple power ratings: 30/45/60W/m available to fit diverse heat dissipation requirements
  • Diversified protection structures: Tinned copper braid, thermoplastic and fluoropolymer sheath for selection
  • Flexible installation: Cuttable on site and safe for overlapping layout, simplifying construction work
  • Stable long-term performance: Advanced cross-linking technology minimizes power attenuation and lowers maintenance costs



Technical Data

Power output: 30, 45, 60 (W/m)

Maximum maintain temperature: 85°C

Maximum exposure temperature: 135°C

Minimum installation temperature: -60°C

Rated voltage: 110V-120V / 220V-240V

PSR-P: Tinned copper metal braid

PSR-PB: Thermoplastic outer jacket

PSR-PF: Fluoropolymer outer jacket

Max resistance of braid: ≤18.2Ω/km

Bus wire gauge: 16AWG



PSR Series

Output
power
@+10℃
(W/m)

Maximum
maintain
temperature
(℃)

Max length
@+10℃
16/32/50A
(m)

Max length
@+0℃
16/32/50A
(m)

Max length
@-20℃
16/32/50A
(m)

Dimension
(mm)

Weight
(kg/100m)

30PSR-PB

30

85

102/122

90/110

85/95

12.8×5.6

10.8

30PSR-PF

30

85

102/122

90/110

85/95

12.5×5.3

10.2

45PSR-PB

45

85

87/107

70/90

62/80

12.8×5.6

10.8

45PSR-PF

45

85

87/107

70/90

62/80

12.5×5.3

10.2

60PSR-PB

60

85

70/95

55/75

47/67

12.8×5.6

10.8

60PSR-PF

60

85

70/95

55/75

47/67

12.5×5.3

10.2
