Product Description

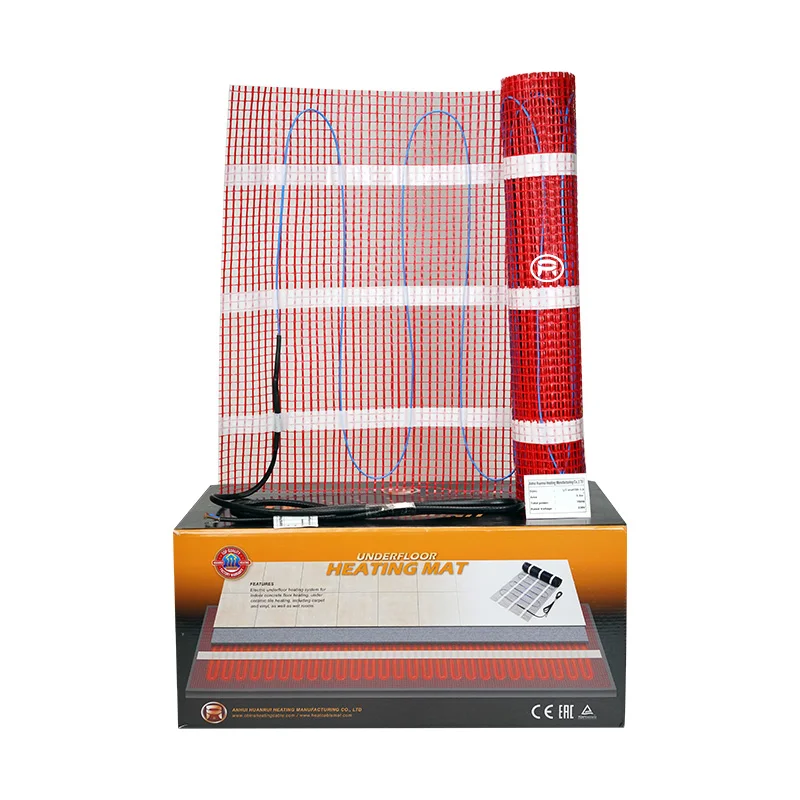

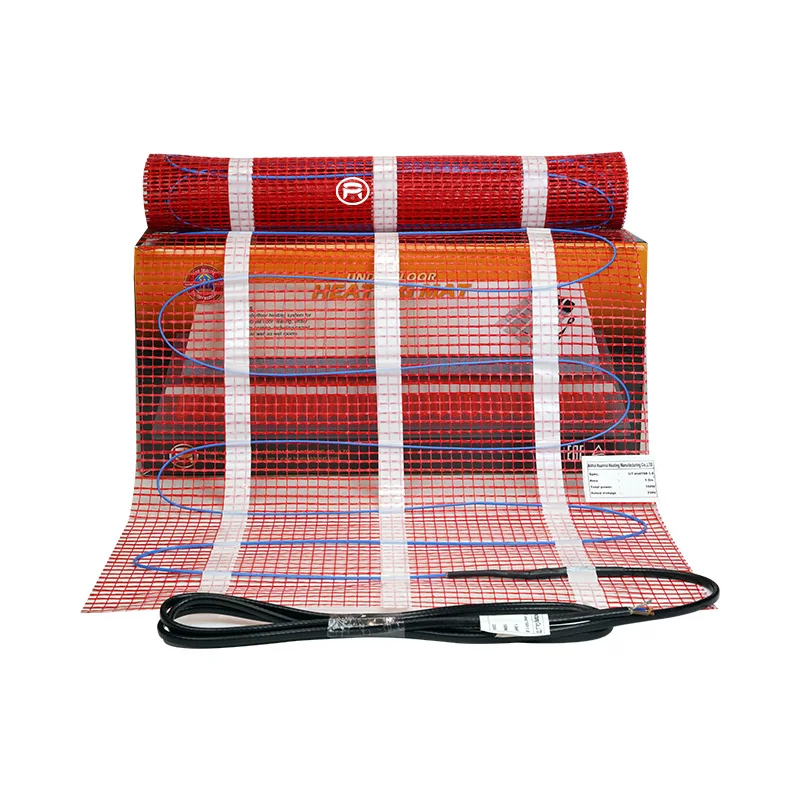

Modern 220V 200W/m2 Self-Adhesive Underfloor Heating Mat 230V/220V for Home & Apartment
T-Mat Series

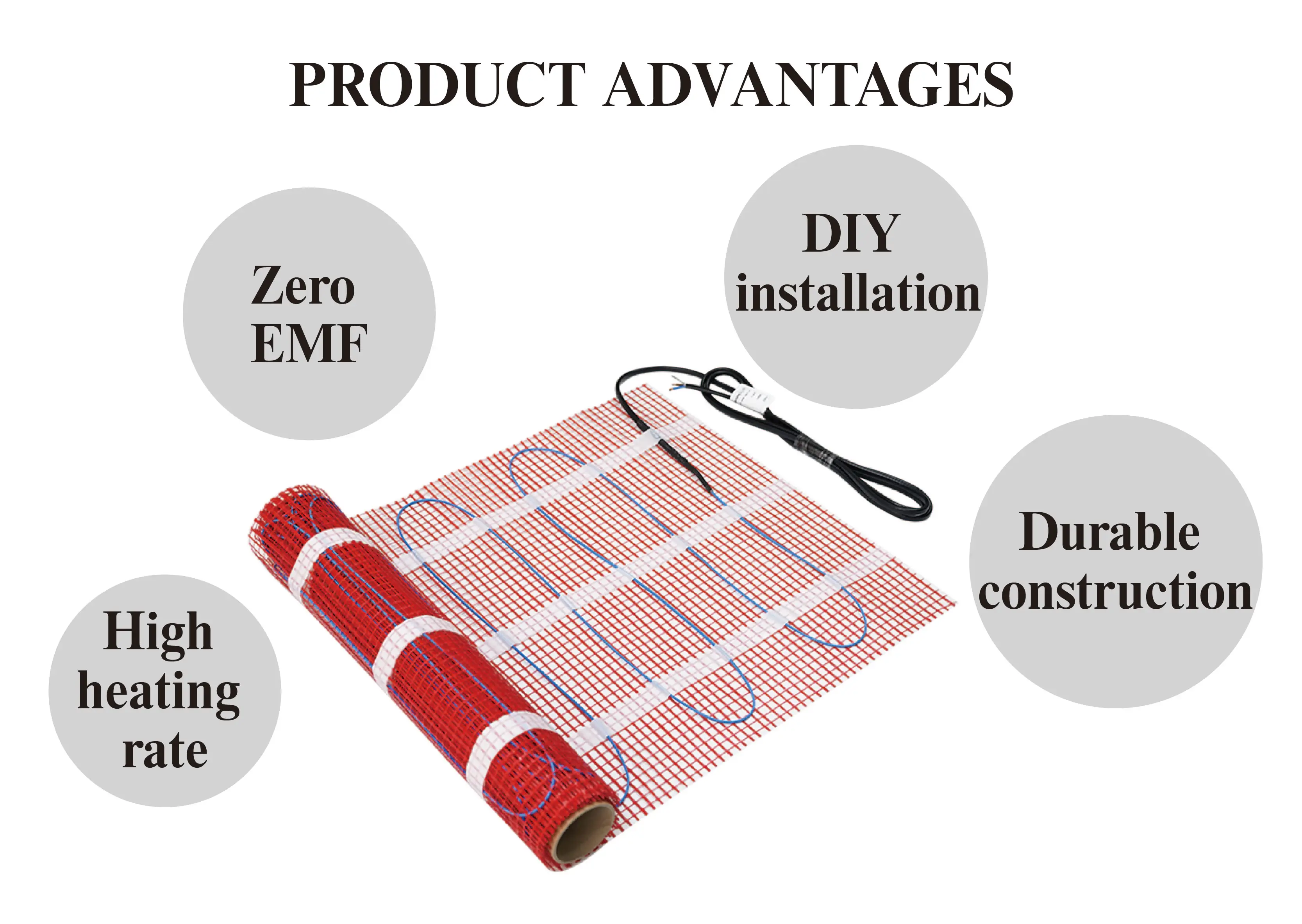

The T-Mat Series Fiberglass Mesh Heating Floor Mat adopts a twin-conductor heating structure, enabling quick and easyinstallation. It is safe and reliable with no electromagnetic radiation, and is suitable for being laid on flat concrete layers or under tiled floors.

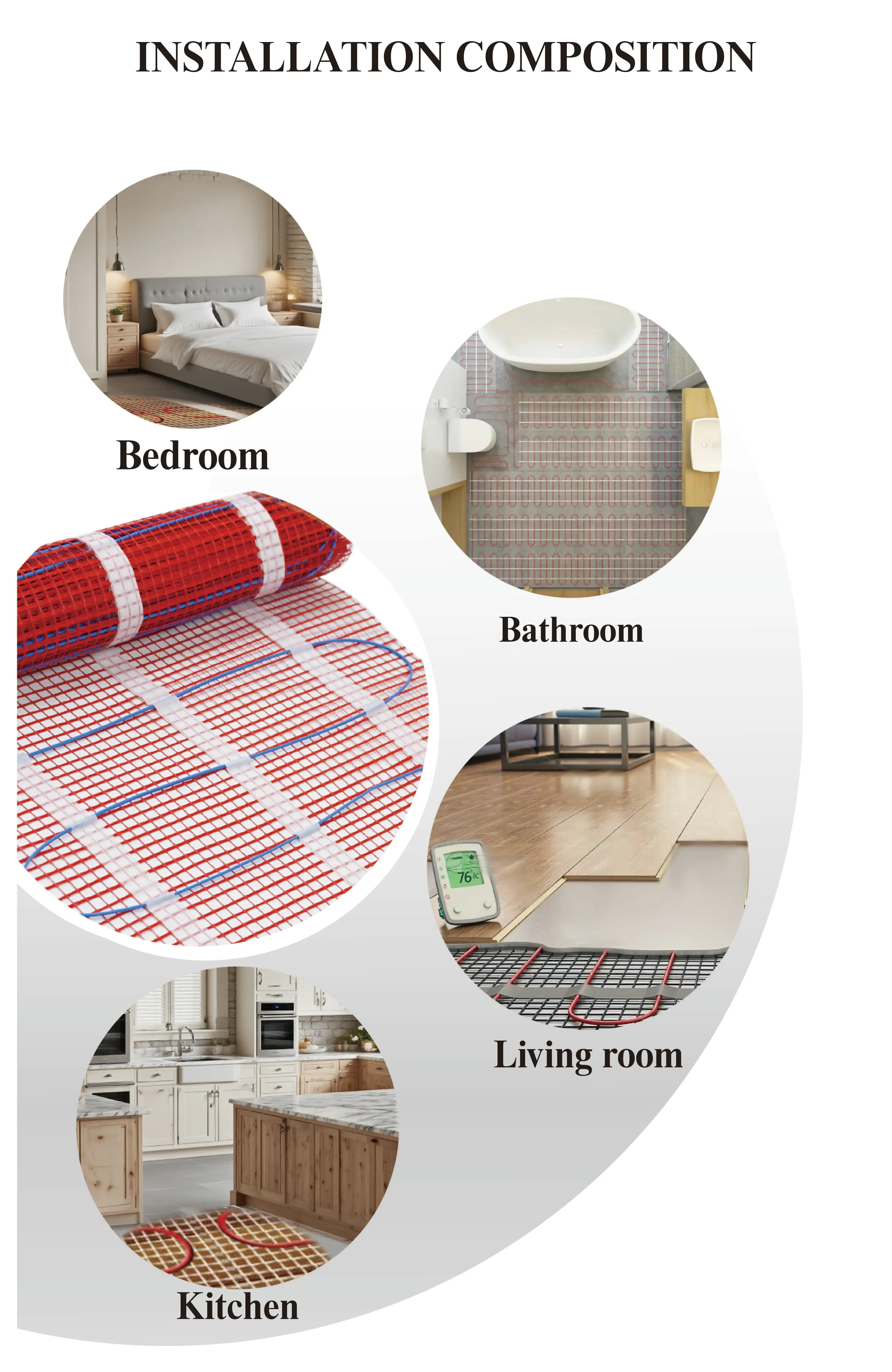

* The 100W/m² and 150W/m² T-Mat floor mat products can serve as the primary heat source for household floor heating. They areoften used as heating units in kitchens, dining rooms, bathrooms, and other spaces with tiled floors.
* The 200W/m² T-Mat floor mat product is typically applied in areas and occasions with high heat loss, such as bathrooms, saunas, and high-temperature yoga studios. Its heating speed is 25% faster than that of low-power products.
Product Parameters
This table lists our commonly used (product) specifications; customization for products with other power ratings is available.
230V
Heating Area
Mat Dimensions
Watts
(150w/㎡）
current/Amps
Resistance/Ω
Catalog number
㎡
sq.ft
m*m
in.*ft
T-mat150-150
1
10.8
0.5*2
20*6.5
150
0.7
352.7
T-mat150-225
1.5
16.1
0.5*3
20*9.7
225
1
235.1
T-mat150-300
2
21.5
0.5*4
20*12.9
300
1.3
176.3
T-mat150-375
2.5
26.9
0.5*5
20*16.1
375
1.6
141.1
T-mat150-450
3
32.3
0.5*6
20*19.4
450
2
117.6
T-mat150-525
3.5
37.7
0.5*7
20*22.6
525
2.3
100.8
T-mat150-600
4
43.1
0.5*8
20*25.8
600
2.6
88.2
T-mat150-675
4.5
48.4
0.5*9
20*29.1
675
2.9
78.4
T-mat150-750
5
53.8
0.5*10
20*32.3
750
3.3
70.5
T-mat150-900
6
64.6
0.5*12
20*38.8
900
3.9
58.8
T-mat150-1050
7
75.3
0.5*14
20*45.2
1050
4.6
50.4
T-mat150-1200
8
86.1
0.5*16
20*51.7
1200
5.2
44.1
T-mat150-1350
9
96.9
0.5*18
20*58.1
1350
5.9
39.2
T-mat150-1500
10
107.6
0.5*20
20*64.6
1500
6.5
35.3
T-mat150-1800
12
129.2
0.5*24
20*77.5
1800
7.8
29.4
230V
Heating Area
Mat Dimensions
Watts
(200w/㎡)
current/Amps
Resistance/Ω
Catalog number
㎡
sq.ft
m*m
in.*ft
T-mat200-200
1
10.8
0.5*2
20*6.5
200
0.9
264.5
T-mat200-300
1.5
16.1
0.5*3
20*9.7
300
1.3
176.3
T-mat200-400
2
21.5
0.5*4
20*12.9
400
1.7
132.3
T-mat200-500
2.5
26.9
0.5*5
20*16.1
500
2.2
105.8
T-mat200-600
3
32.3
0.5*6
20*19.4
600
2.6
88.2
T-mat200-700
3.5
37.7
0.5*7
20*22.6
700
3
75.6
T-mat200-800
4
43.1
0.5*8
20*25.8
800
3.5
66.1
T-mat200-900
4.5
48.4
0.5*9
20*29.1
900
3.9
58.8
T-mat200-1000
5
53.8
0.5*10
20*32.3
1000
4.3
52.9
T-mat200-1200
6
64.6
0.5*12
20*38.8
1200
5.2
44.1
T-mat200-1400
7
75.3
0.5*14
20*45.2
1400
6.1
37.8
T-mat200-1600
8
86.1
0.5*16
20*51.7
1600
7
33.1
T-mat200-1800
9
96.9
0.5*18
20*58.1
1800
7.8
29.4
T-mat200-2000
10
107.6
0.5*20
20*64.6
2000
8.7
26.5
T-mat200-2400
12
129.2
0.5*24
20*77.5
2400
10.4
22
Product Details
product floor warming system intelligent electric underfloor 220v 230v heating mat-2
product floor warming system intelligent electric underfloor 220v 230v heating mat-3
product floor warming system intelligent electric underfloor 220v 230v heating mat-4
Company Profile
product floor warming system intelligent electric underfloor 220v 230v heating mat-5
product floor warming system intelligent electric underfloor 220v 230v heating mat-6
product floor warming system intelligent electric underfloor 220v 230v heating mat-7
product floor warming system intelligent electric underfloor 220v 230v heating mat-8
product floor warming system intelligent electric underfloor 220v 230v heating mat-9
product floor warming system intelligent electric underfloor 220v 230v heating mat-10
FAQ
Q1: Are you a manufacturer or trading company?
A: We are a professional manufacturer based in Hefei, Anhui, China, with operations starting in 2007. We oversee the entire order process from initiation to completion, ensuring full quality control at every stage. You are warmly welcome to visit our facility.

Q2: What products can customers purchase from you?
A: Our product range includes self-regulating heating cables, constant wattage heating cables, underfloor heating cables and mats, outdoor snow-melting cables and mats, water pipe anti-freeze systems, roof/gutter de-icing systems, and process temperature maintenance systems.

Q3: Are your heating cables/mats eco-friendly?
A: Yes, our heating cables and mats comply with the ROHS directive. They do not contain lead (Pb), cadmium (Cd), mercury (Hg), hexavalent chromium (Cr VI), polybrominated biphenyls (PBBs), or polybrominated diphenyl ethers (PBDEs).

Q4: How can I obtain a sample to test your product quality?
A: Samples are provided free of charge. For new clients, the courier/shipping cost is to be borne by the client.

Q5: What is your delivery time?
A: Normally, the delivery time is within 7–15 days. However, the specific delivery time depends on the model and quantity of the products you order.

Q6: What is the warranty period for your products?
A: We offer a 10-year warranty for heat tracing products, and a 25-year warranty for underfloor heating cables and mats.

Q7: Can you provide OEM and ODM services for us?

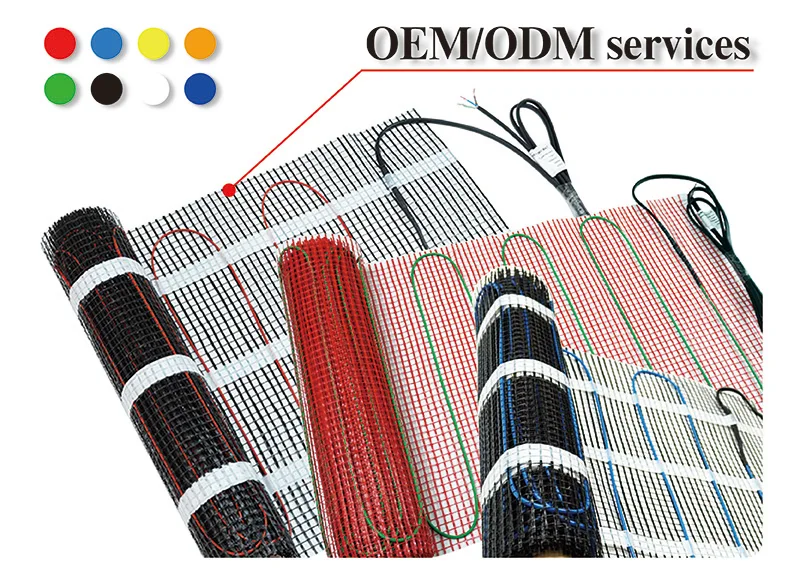

A: Yes, we can provide professional OEM and ODM services, including customization of logos, sizes, colors, and other specifications as per your requirements.

Q8: What are your payment terms?
A: Our accepted payment methods include Alibaba Secure Payment, T/T (Telegraphic Transfer), L/C (Letter of Credit), D/P (Documents against Payment), D/A (Documents against Acceptance), MoneyGram, PayPal, Western Union, cash, and escrow.

Q9: What are your delivery terms?
A: We support various international delivery terms (Incoterms), including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, DAF, DES, as well as express delivery services.

Q10: Are your heating cables/mats flame-retardant and waterproof?
A: All raw materials used in our heating cables and mats are flame-retardant, and the products have an IP67 waterproof rating.
