Max. Exp. Temp.: 200°C

Max. Maint. Temp.: 120°C

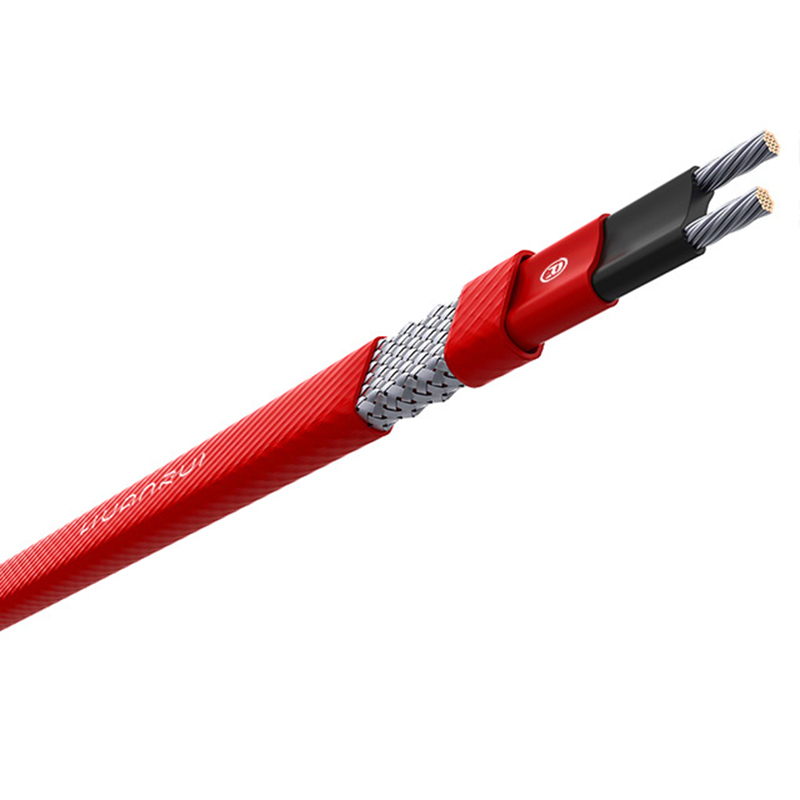

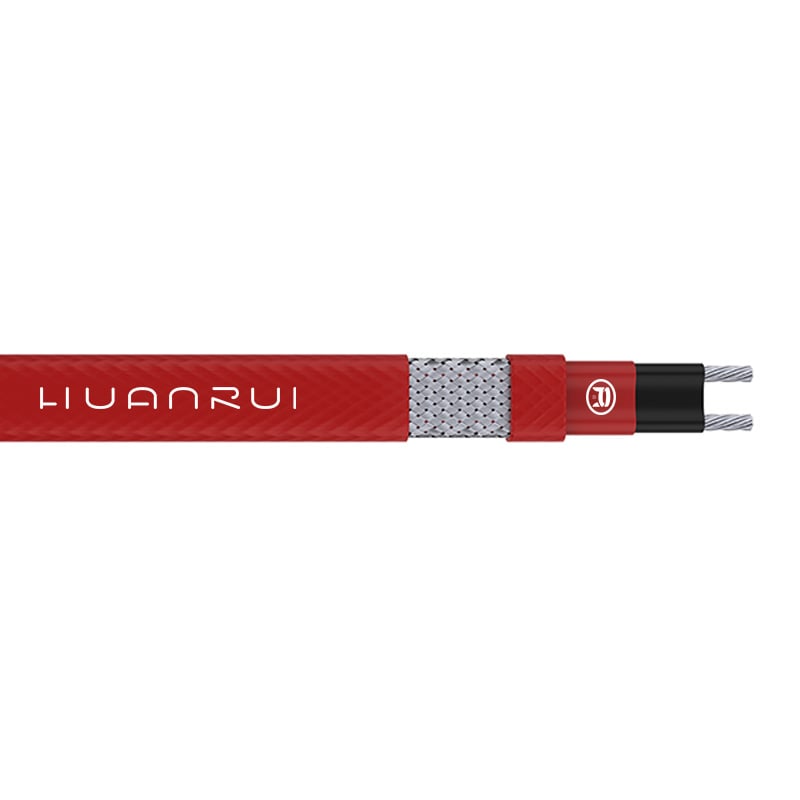

XBR is a high-performance self-regulating heating cable developed by Anhui Huanrui for high-temperature industrial heat tracing. It features a maximum maintenance temperature of 120°C and a maximum exposure temperature of 200°C. Adopting an all-fluoropolymer double-layer structure, both the inner insulation and outer jacket are made of high-performance fluorine materials. Combined with Huanrui’s proprietary multi-layer co-extrusion technology, it achieves an optimal balance of high-temperature stability, mechanical strength, and chemical resistance. The cable operates reliably at 120°C and can withstand short-term thermal shocks up to 200°C without softening, aging, or cracking. Suitable for both conventional high-temperature and partial extreme working conditions, it is a cost-effective and reliable mainstream solution for high-temperature heat tracing.

Inquiry
  • Overview
  • Recommended Products

Application

XBR is designed for freeze protection, thermal insulation, temperature maintenance, and snow/ice melting in high-temperature process systems, industrial equipment, and outdoor facilities. It performs well under conventional high temperature, heavy corrosion, humidity, outdoor exposure, and explosive environments:

  • 120°C-grade process pipelines, tanks, valves, and flanges in chemical, petrochemical, and coal chemical industries;
  • Oil and gas transmission pipelines, wellhead equipment, and storage tank tracing;
  • Steam pipelines, condensate recovery systems, and high-temperature water pipes;
  • Snow and ice melting for roofs, gutters, downspouts, ramps, and roads;
  • High-temperature clean pipelines in food and pharmaceutical industries;
  • Humid, acidic, alkaline, and solvent-corrosive environments;
  • Explosive hazardous areas (Exe II C Gb T4 / Ext III C Db T4).



Feature

  • High-Temperature Stability: Long-term maintenance at 120°C, short-term resistance to 200°C; excellent thermal stability and thermal shock resistance.
  • All-Fluoropolymer Protection: Dual fluoropolymer insulation and jacket; resistant to water, acids, alkalis, solvents, abrasion, impact, and aging.
  • Wide Power Range: 15/30/45/60 W/m options; adaptable to various pipe sizes, lengths, and heat loads.
  • Low Attenuation & Long Life: Multi-layer co-extrusion structure with tight bonding; minimal power decay and extended service life.
  • Safe Self-Regulating: No overheating or burnout when overlapped; certified for both hazardous and ordinary areas.
  • Flexible Installation: Cut to length on-site; installable at temperatures as low as -60°C for cold outdoor environments.



Technical Data

Power output: 15,30,45,60 (W/m)

Rated voltage: 110V-120V/ 220V-240V

BusWire Gauge: 1.21mm²& 1.37mm²

XBR-PB: Fluropolymer outer jacket

Maximum maintain temperature: 120°C

Maximum exposure temperature: 200°C

Minimum installation temperature: 60°C

Marking: Exe IlC Gb T4/Ext IllIC Db T4



XBR Series

Output
power
@+10℃
(W/m)

Maximum
maintain
temperature
(℃)

Max length
@+10℃
16/32/50A
(m)

Max length
@+0℃
16/32/50A
(m)

Max length
@-20℃
16/32/50A
(m)

Dimension
(mm)

Weight
(kg/100m)

15XBR-220-PB

15

   120

165/200

117/189

102/161

10.8×5.0

12.5

30XBR-220-PB

30

   120

85/130

69/114

62/103

10.8×5.0

12.5

45XBR-220-PB

45

   120

70/90

49/82

44/73

10.8×5.0

12.5

60XBR-220-PB

60

   120

50170

38/64

35/59

10.8×5.0

12.5
