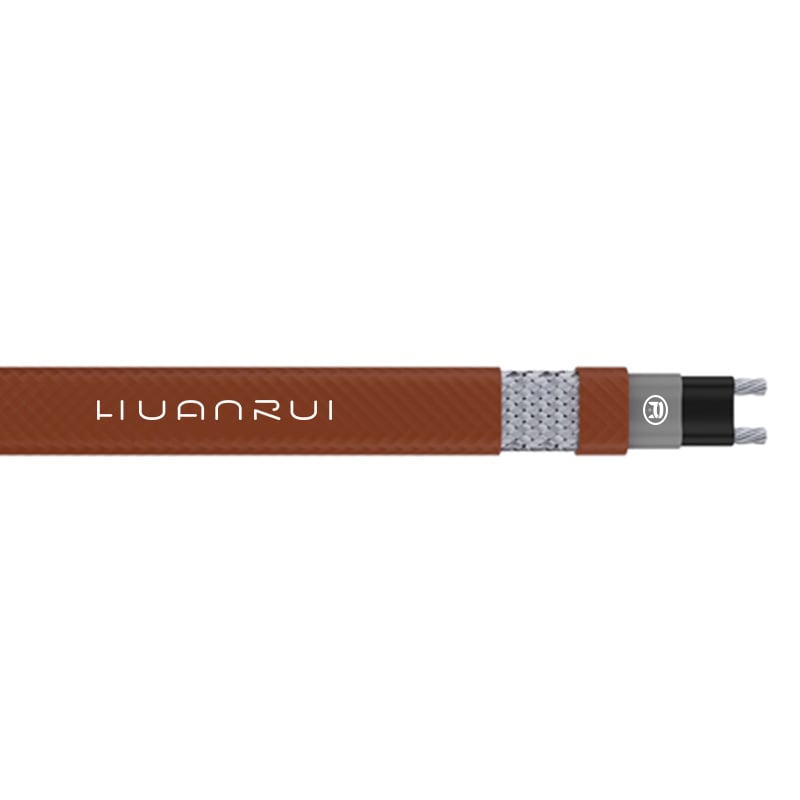

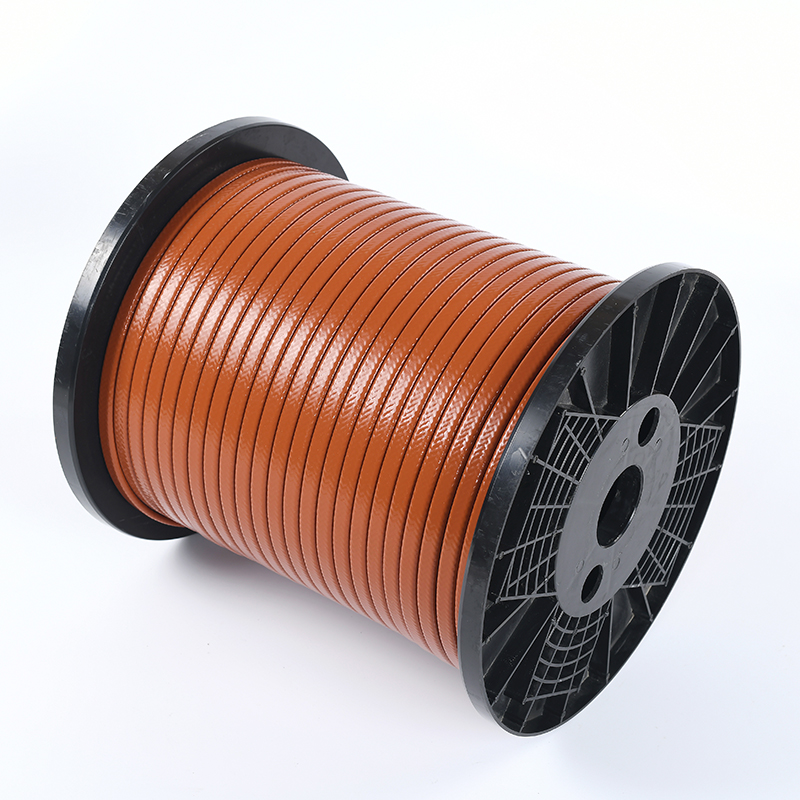

SSR Self-Regulating Heating Cable
SSR Self-Regulating Heating Cable
SSR Self-Regulating Heating Cable
SSR Self-Regulating Heating Cable
SSR Self-Regulating Heating Cable
SSR Self-Regulating Heating Cable
SSR Self-Regulating Heating Cable
SSR Self-Regulating Heating Cable

SSR Self-Regulating Heating Cable

Max. Exp. Temp.: 135°C

Max. Maint. Temp.: 110°C

Benchmarked against international mainstream heating technology, SSR is a practical self-regulating heating cable designed for general industrial temperature control. It maintains a steady operating temperature at 110°C and withstands peak transient temperature up to 135°C.

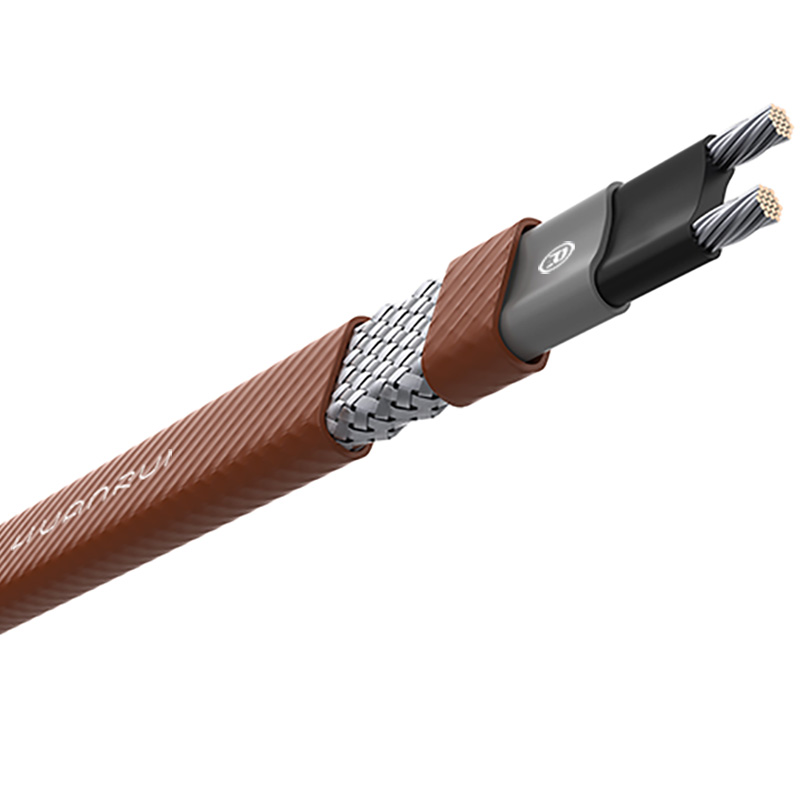

Manufactured by extruding parallel bus wires and semiconductive heating matrix integrally, the cable features sectional independent temperature control. It automatically adjusts heating output responding to ambient temperature with sensitive and stable reaction. Equipped with diverse outer sheath structures, it adapts to conventional, corrosive and explosive working conditions. Boasting solid durability, low maintenance cost and high cost performance, it fits common industrial freeze protection and process temperature maintenance.

Inquiry
  • Overview
  • Recommended Products

Application

It serves freeze protection and constant temperature maintenance for industrial equipment, especially facilities with high heat loss. Widely applied in various industrial sites:

  • Thermal insulation for large-diameter pipelines, storage tanks, valves and flanges
  • Freeze prevention and temperature stabilization of pipelines in non-hazardous areas
  • Fluoropolymer sheath version applicable to corrosive and hazardous explosive zones
  • General heating scenarios including factory utility pipelines and outdoor overhead pipelines





Feature

  • Sectional intelligent temperature control: Independent power adjustment avoids local overheating for safe operation
  • Diversified protection options: Multiple sheath types meet protection and compliance requirements of different conditions
  • Optional power grades: 35/45/60W/m specifications match varying heat dissipation demands
  • Durable performance: Advanced manufacturing technology ensures negligible power attenuation in long-term service
  • Flexible installation: Cuttable on site to suit complex pipeline layouts
  • Strong environmental adaptability: Available for construction under low temperature circumstances with wide application compatibility



Technical Data

Power output: 35, 45, 60 (W/m)

Maximum maintain temperature: 110°C

Maximum exposure temperature: 135°C

Minimum installation temperature: -60°C

Rated voltage: 110V-120V / 220V-240V

SSR-P: Tinned copper metal braid

SSR-PB: Thermoplastic outer jacket

SSR-PF: Fluoropolymer outer jacket

Max resistance of braid: ≤18.2Ω/km

Bus wire gauge: 16AWG



SSR Series

Output
power
@+10℃
(W/m)

Maximum
maintain
temperature
(℃)

Max length
@+10℃
16/32/50A
(m)

Max length
@+0℃
16/32/50A
(m)

Max length
@-20℃
16/32/50A
(m)

Dimension
(mm)

Weight
(kg/100m)

35SSR-PF/35SSR-PB

35

110

75/100

65/90

45/60

13.3X6.1

12.5

45SSR-PF/45SSR-PB

45

110

60/85

50/75

35/50

13.3X6.1

12.5

60SSR-PF/60SSR-PB

60

110

50/70

40/60

30/45

13.3X6.1

12.5
