What Are the Common Myths About Pipe Freeze Protection and Thermal Management

Winter-safe operation of industrial facilities and civil infrastructure largely relies on active heat tracing systems. Despite mature development of thermal control technology, several misleading misconceptions still affect project design and reduce system efficiency. Facility operators and engineering specialists need to master the matching principle among heating cables, pipelines and ambient conditions to formulate cost-effective freeze protection solutions.

Myth 1: Thermal insulation alone delivers full freeze protection

Many piping practitioners hold the wrong view that high-performance insulation like mineral wool and closed-cell foam can independently prevent pipe freezing. In fact, insulation works as passive thermal barrier to slow heat loss without heat generation. For pipelines permanently filled with fluid and impossible to drain, internal heat will dissipate eventually regardless of insulation thickness, requiring heat tracing to replenish lost heat under frigid weather. However, for pipelines able to drain fully in mild climate zones, draining plus thickened insulation is a feasible freeze-proof solution without heat cables.

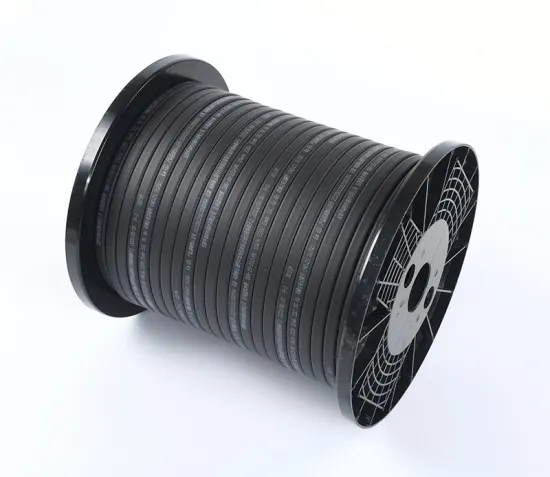

Myth 2: Self-regulating cables cannot work without control thermostats

The wording “self-regulating” misleads users into mandatory thermostat installation. The semi-conductive polymer core adjusts heat output automatically and drops power close to zero when ambient temperature rises above mild range. For short-distance non-explosion-proof applications such as water supply pipe and gutter anti-freezing, direct power supply without thermostat complies with global standards. Temperature controllers serve as energy-saving upgrades for long industrial pipelines, precise temperature maintenance and hazardous locations instead of compulsory parts.

Myth 3: Constant-wattage cables are outdated and inferior to self-regulating versions

It is incorrect to claim self-regulating cables replace all constant-wattage products, as both technologies fit differentiated engineering demands. Self-regulating cables permit overlapping installation without overheating, ideal for complex routing, small-bore pipelines and tank freeze protection.Constant-wattage cables are divided into parallel and series types: parallel constant-wattage excels at medium & short high-temperature process maintenance with stable power output for easy load calculation; series constant-wattage is limited by voltage drop and unsuitable for ultra-long piping runs. Besides, MI mineral-insulated cables are preferred for high-temperature long-distance process tracing. Constant-wattage products are forbidden to overlap during installation, restricting their usage in irregular layout projects.

Myth 4: All installed heat tracing systems require seasonal routine maintenance

Maintenance requirements vary by cable construction and service environment. Standard polymer self-regulating cables deployed outdoors or in corrosive surroundings need annual pre-winter inspection covering jacket damage, poor thermal contact and water intrusion at connection terminals, together with regular insulation resistance test. In contrast, MI mineral-insulated armored cables feature outstanding mechanical and corrosion resistance, enabling years of maintenance-free service under dry indoor fixed installation. Targeted maintenance ensures effective heat transfer and reliable performance in freezing seasons.
